Fernbedienung / Gerät Bedienung

Dieser Abschnitt enthält Informationen über die Bedienung Ihres Receivers und die Funktionen der unterschiedlichen Fernbedienungen und Tasten direkt am Gerät

---

4.1 Fernbedienungen click here to find info on setting up the language	4.2 Geräte Bedienung click here to find info on setting up the Network	4.3 Web Interface click here to find info on setting up the HDD
4.4 Telnet Control click here to find info on Setting Up the Tuner	4.5 Rgui click here to find info Proforming a Scan	4.6 Bootloader click here to find info on Orginising Your Channels
4.7 TitanNit WebIF click here to find info on Setting Up a Media	4.8 FTP (File Transfer Protocol) click here to find info Playing Back Media	4.9 Autostart Scripting (usercmd.sh) Conclusion/ what to do next after stting up Titan

---

4.1 Fernbedienungen (Seitenanfang)

---

• (RC Atevio700)
• (RC Atevio7000, Atevio7500, Atemio7600)
• (RC Atemio500, Atemio510)
• (RC Atemio520)
• (RC Atemio520-V2)
• (RC Atemio530)

• (RC UFS910)
• (RC UFS912)
• (RC UFS922)

4.1.1 Fernbedienung Atevio700 (back)

TEXT RC Atevio 700

4.1.2 Fernbedienung Atevio7000, Atevio7500, Atemio7600 (back)

The section contains information on the functions and operation of your remote control unit. Special Function Buttons operation during channel streaming Resolution: This Key Switches the videomode. V.Format: This Key Switches the Video format. Recall: This key can bring up the recent channel history so you can jump easilly between programs. Info: This Button displays the infobar. fav: This button brings up the favourite and Boquet lists to easilly select programs. Menu: This key opens the menu. Sleep: This Key can setup the sleep timer. Help: This key can display detailed information and help text's. Exit: This key exits menus and popups . text: This key shows the teletext display. Ok: This button confirms menu items and popups. Programming the universal remote to operate a supported TV This section explains how to automatically search and program your universal remote control to operate your tv NOTE: If no inputs for 10 seconds during Setting the TV RC code the setting mode is terminated. Automatic code search Press the TV / Atevio button on the remote (for at least 3 seconds) until the LED flashes twice. Enter the code 001. The LED flashes twice to confirm the entry. Press and hold the "ON / OFF" button until the TV turns off. Note: The LED flashes every 1.5 seconds and sends a new TV power rc code. Release the button immediately then press the "OK" button to store the TV code. (This can take up to 15 minutes to cycle all the tv's pre programmed in to the remote from the factory) If you dont let go of the power key in time it will step to the next RC Power button code if this happens use the D-Pad down to rewind 5 codes to attempt to store the code again. To interrupt the search mode, Press the Exit button for 2 seconds and return to normal operation or wait for 10 seconds with no key presses. The remote control blinks 5 times at the end of the list if the tv has not turned off by the time your tv is not a supported model. Reset remote to factory programming This will reset the remote back to a factory non programmed state, this is nessesary if the remote needs to be reprogrammed to operate a new TV and was previously programmed. Press the TV / Atevio button on the remote (for at least 3 seconds) until the LED flashes twice. Enter the code 000. The LED flashes twice to confirm the entry. The remote control will now be reset (no code programmed)

4.1.3 Fernbedienung Atemio 500 / Atemio 510 (back)

TEXT RC Atemio 500/510

4.1.4 Fernbedienung Atemio 520 (back)

TEXT RC Atemio 520

4.1.5 Fernbedienung Atemio 520 V2 (back)

TEXT RC Atemio 520-V2

4.1.6 Fernbedienung Atemio 530 (back)

TEXT RC Atemio 530

4.1.7 Fernbedienung Kathrein UFS910 (back)

TEXT RC UFS 910

4.1.8 Fernbedienung Kathrein UFS912 (back)

TEXT RC UFS912

4.1.9 Fernbedienung Kathrein UFS922 (back)

TEXT RC UFS922

---

4.2 Gerät Bedienung (Seitenanfang)

---

The section contains information on the functions and operation of your Receiver from the onboard buttons. Please note: the control is very limited from the on device controls but simple menu and tv control's can be made:

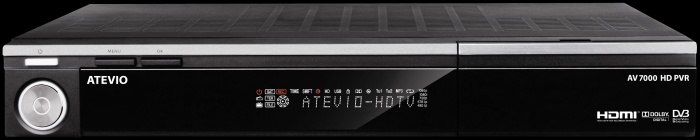

Device Controll keys

Power	This Key Switches to the power menu or shuts down depending on the "power action" see (Adjust) for more info.
Menu:	This Key brongs up the on screen display/ menu.
Ok:	This key accept on screen prompts.
D-pad:	These buttons can control the volume and TV channel when on the TV display it can also be used to navigate the menu and on screen prompts.

---

4.3 Web Interface (Seitenanfang)

---

The section contains information on the functions and operation of your Receiver from the web interface over LWAN, LAN or wifi.

---

4.3.1 Channel list (top of the page)

---

All	Show All Channels from all Bouquets .
Sat	Sort channels By Satellite.
provider:	Sort channels By provider.
A-Z:	Sort channels Alphabetically.
Bouquets:	Sort channels By Boquet.

---

4.3.2 Box Control (top of the page)

---

Power Control:	This brings up the links to control the power settings (shutdown, restart, etc....)
Message:	Send a message to the display of the tv.
Remote:	Bring up the remote on the web page for control of the decoder.
Screenshot OSD:	Take a screen shot of the OSD.
Play Movie (URL:	Play a movie from the selected url.

---

4.3.3 Movies (top of the page)

---

This will bring up a list of the movie directory on the receiver please see (Web Controls) for more information

---

4.3.4 Timer (top of the page)

---

Timer List:	Show a list of the timer Recordings.
Timer Archive:	Show a list of all the completed timer recordings.
Add Timer:	Add a timer recording.

---

4.3.5 System (top of the page)

---

Extensions:	Show a list of alailable extensions and plugins to install.
System update:	Update the system software.
System Backup:	backup the system to an image file.
Settings Backup/ restore:	Take/ restore a backup of the current settings and config.

---

4.3.6 Settings (top of the page)

---

system settings:	This brings up a list of the items in the adjust menu of the receiver See Adjust for more information on the items in this menu.
Oscam web interface:	Shows config http information for the oscam plugin (if installed).
Xupnpd:	Shows information on the Xupnpd media streaming plugin.

---

4.3.7 Information (top of the page)

---

This section contains detailed config and system info about your reciever and TitanNit. Please see the below links for more information on the items contained with in this menu.

• (Service)
• (News letter)
• (About)
• (Streaming)
• (Atemio (Hotline))
• (Titan Changelog)
• (Git Changelog)
• (System Info)
• (Log)

---

4.3.8 Help (top of the page)

---

Offline help:	Currently this has no function and is for future use.
Online help:	Shows this wiki from the web interface for help and support.

---

4.3.9 Web Controls (top of the page)

---

Filelist Display Web Buttons

This section explains the functions and discriptions of the icons displayed on the web page along side the file list display.

	This button plays the selected program (web Stream)
	This button plays the selected program (Stream)
	This button deletes the selected program
	This button downloads the selected program
	This button displays the (EPG)
	This button shows the selected channel is audio only (radio)
	This button shows the selected channel is audio and video (TV)
	This button shows the selected channel is not available

Other Web Buttons

This section explains the functions and discriptions icons displayed on the web page title area.

	This button shows or hides the onscreen remote control
	This button turns off the Reciever
	This button restarts the Receiver
	This button restarts the GUI
	This button puts the receiver into standby
	This button mute's the sound
	These buttons select the volume 10 to 100% (left to right)
	This button starts a Recording
	This button shows the signal info's
	This box enables you to search the EPG type your test into the box and press enter.

---

To open the web interface, use an Internet browser and enter the ip address of your decoder in the adress bar as follows: you may find your ip adress from the system information/network display.

​http:// IP.Adresse.des.Receivers (zB. ​http://192.168.0.100)

---

4.4 Telnet Control (top of the page)

---

The section contains information on the operation of your Receiver over a telnet session.

Telnet Setup

• Eithernet Interface Telnet Setup

1 A Network connection must be active

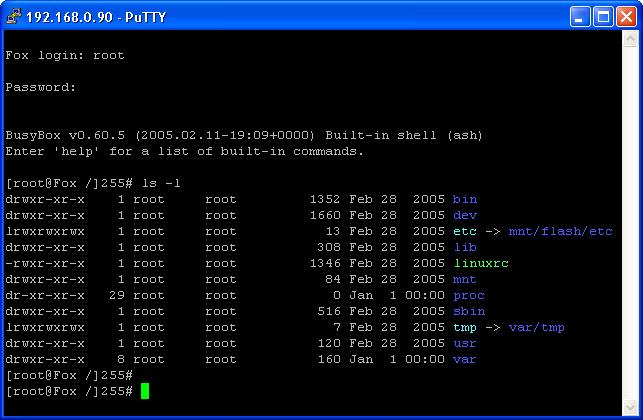

2 Install the client found here: (​Putty).

3 Find the IP address from the system info (Network) section

4 Insert the IP address info into the telnet client

5 Click connect.

• Serial Interface Telnet Setup

1 Connect a null modem cable between the Receiver and PC

2 Install the client found here: (​Putty)

3 Set up the serial port connection parameters

4 Click connect.

After the above steps are completed you will now be presented with a console where you can login to your Receiver with a username and password.

after entering your login information there are a few receiver specific functions that may be handy if you require information on basic telnet commands i suggest you have a look on ​linux.org

Remote RC debugging

killall -9 evremote2
evremote2

Start FTDI driver

mknod / dev.static/ttyUSB0 c 188 0"

Test FTDI driver commands

ls-al / dev/ttyUSB0

cat /proc/bus/usb/devices

lsmod | grep usbserial

Take a screen shot

/sbin/grab -j 100 -r 960 /tmp/000.jpg

---

4.5 Rgui (Seitenanfang)

---

Rgui ist ein TitanNit Plugin mit dem man von einer Box aus andere Boxen bedienen kann.
Dabei wird die Gui komplett übertragen, ohne das TV-Bild des entfernten Receivers wiederzugeben.
Damit kann man also nur die anderen Receiver von aussen bedienen, aber nicht das Tv Signal weiter streamen.

---

4.6 Bootloader (Seitenanfang)

---

Aufgaben des Boot Loaders:

• Erkennung der Hardware
• Starten des Image

iboot ist ein Boot Loader

geschrieben von Solala.

I-boot ab 1.32

I-boot starten

Receiver stromlos machen beim Einschalten auf der Fernbedienung "Menu" drücken. I-boot startet bis Menu-Flash

Experten Modus einschalten

Receiver stromlos machen beim Einschalten auf der Fernbedienung "Menu" drücken. I-boot startet bis Menu-Flash

nun mit Steuerkreuz links/rechts auf "SETTINGS" gehen und mit rauf/runter auf "set OSD color" dann auf OK mit links/rechts wechselt man durch die Farben mit rauf/runter stellt man die einzeln Farben um

bei der AM 510/AM520 ist der Code

Red = 11

Green = 47

Blue =11

bei der AM 7500/7600 ist der Code

Red = 7

Green = 10

Blue =5

dann mit 2x "Exit" raus gehen, bis I-boot "Flash" anzeigt und sofort wieder "Menu" drücken. auf dem Tv-Bildschirm sollte nun stehen:

!!! YOU ACTIVATED EXPERTENMODE !!! - du hast den Experten Modus aktiviert

!!!NO WARRANTY ----- USE AT YOUR OWN RISC !!! Keine Garantie - benutzen auf eigene Gefahr

if you dont agree : execute "clean environment sector" in MENU-FLASH wenn Sie die Garantie nicht verlieren willst, mußt du "clean environment sector" in MENU-FLASH ausführen

==4.6.1 Hauptkategorien ==

MENU-FLASH

SETTINGS

MENU_MISC

MENU-NET

Unterkategorien

4.6.2 MENU-FLASH (zurück)

• 1.USB IRDupdt Image flash per Usb-Stick oder Usb-HDD von sda1 (standard) (abhängig von SETTINGS>Select USB/SATA dev 1-4)

• 2.list USBirds wenn mehrere ird Image's auf dem Usb-Stick liegen, kann man sich diese anzeigen lassen und dann das Richtige flashen

• 3.clean environment sector setzt die Bootargs zurück und bringt I-boot in den Standard Modus, wenn man keinen Experten Modus nutzen will wegen der Garantie

• 4. clean Flash ! Include swap löscht das komplette Image, inklusive den Swap-Bereich, also alle Einstellungen, Plugins, Backups und so weiter.

• 5. SATA IRDupdt hiermit kann man ein ird Image von einer internen Platte oder einer extern SATA/e-SATA Platte flashen

• 6. list SATAirds wenn mehre ird Image's auf dem SATA/e-SATA liegen, kann man sich diese anzeigen lassen und dann das Richtige flashen

• 7. allow I-boot update Entwickler Option damit man auch nur das image flashen kann und der auf der Box befindliche Bootloader nicht überschrieben wird

Einstellungsoptionen:

0 - i-boot darf nicht überschrieben werden

1 - i-boot darf überschrieben werden (Standardeinstellung)

---

4.6.3 Menu Settings (zurück)

Turbosw	Select overclocking speeds available settings are (0)265, (1)265, (2)297, (3)297, (4)333, (5)333, (6)364, (7)364.
Timeout	Delay befor selecting the default boot option.
USB Sleep	???.
Scroll Speed	How fast the VFDisplay module moves.

---

4.6.4 Menu Misc (zurück)

Disclaimer	Shows the info on the bootloader.
Serial Console	Enables Bootloader serial debugging.
Reset Board	Resets the Receiver and restarts boot process.

---

4.6.5 Menu Net (zurück) (not present in av700/7000)

---

4.7 TitanNit Web-IF (Htmlapi) (top of the page)

---

The section contains information on the operation and control of your decoder from the Htmlapi.

TitanNit provides its own Htmlapi that is freely distributed so that other developers may interface with a reciever running titan.

The Htmlapi is very simple to implement an example message structure is as follows:

• query?param&param&... for html output

• queryraw?param&param&... for raw-struct output

For example if you would wish to send a RC remote keypress of the "Mute" key the message format would be as follows:

• query?sendrc&rcmute

if you would like to retrieve a list of all the current satelites the format would be as follows:

• queryraw?getsat

the output message back from the Reciever would be as follows:

• satname#orbitalpos

and an example raw output would be:

Optus_d2#160
Optus_d1#166
Intelsat_IS19#156

more information on the protocol and the query strings can be found here htmlapi.txt

---

4.8 FTP (File Transfer Protocol) (top of the page)

---

The section contains information on how to setup a FTP connection to your TitanNit Receiver.

Titan Has an inbuilt FTP Server that is able to be used to transfer files to and from your Receiver.

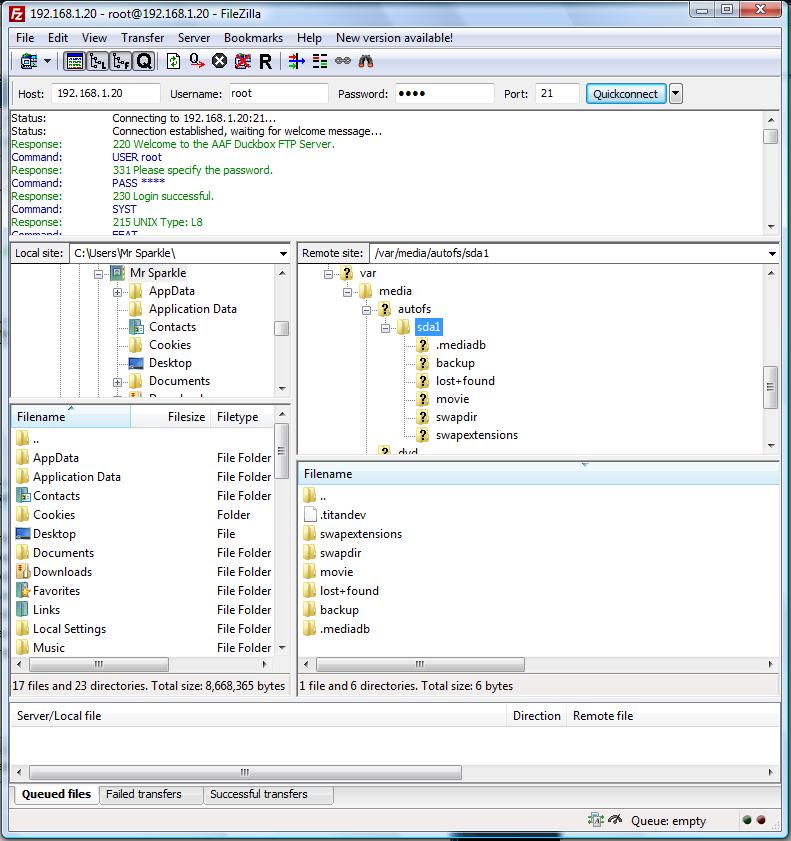

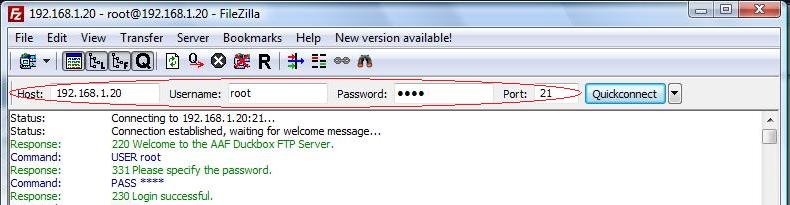

To connect to your receiver you can connect via your browser in windows or use a dedicated FTP program as with many linux programs the default password and user name is "root" and port 21 is the default FTP interface port.

You connect to your receiver via internet explorer on your pc to do this you need to find the IP address fo the decoder from the system information menu Network Information of your receiver and type it into the address bas as follows:

ftp://Username:Password@Ip_Address:Port_Number

ftp://root:root@192.168.0.1:21

if you Wish to use a dedicated FTP program please read the documentation supplied with your program for information on setup of the FTP connection, Below is a screen shot of Filezilla a popular Free FTP client Program with a sample loggin details of my Receiver.

---

4.9 autostart scripting (usercmd) (top of the page)

---

If you wish to run a script on startup of the Receiver you can install commands in the usercmd.sh to be proformed at the startup of the receiver.

a sample of the usercmd.sh is below:

#! / bin / sh
 # Start the user commands here
echo " [ usercmd.sh ] start"
 # insert code here
 exit

the __"# insert code here"__ section must be replaced by your commands.

If you place the following code in to the usercmd.sh it will delete every time shift file on the internal hdd on startup of the receiver:

rm -f /media/hdd/movie/timeshift*.ts

If you place the following code in to the usergmd.sh it will autostart the FTDI driver.

mknod / dev.static/ttyUSB0 c 188 0"

the full path to the file is: "/mnt/config/usercmd.sh"
